尺寸： 15.3英寸
接口： eDP (2 Lanes) , eDP1.3 , HBR1 (2.7G/lane) , 30 pins Connector
分辨率： 2560*1600 QHD 超高清液晶屏
类型： 2K 120HZ 高清全视角广色域高刷IPS游戏电竞液晶屏
表面： 雾面， 釉面
对比度： 1200:1 (Typ.) (TM)
亮度： 500 cd/m2 (Typ.)
外观尺寸： 334.47±0.3 (H)*214.92±0.5(V)(W/O PCB)*2.6 (Max)
334.47±0.3(H)*214.92±0.5(V) (W/PCB)*4.6(Max)
显示区域：329.472(H) ×205.920(V)
色彩：10bit(8+2FRC), gamut sRGB 100% typ,95% min
可视角度：89/89/89/89 (Typ.)(CR≥10)
刷新率：240HZ
适用范围：兼容各种商显示，广告机，TV电视，各品牌电脑，工业设备，医疗设备，车载电视等
详情介绍
产品详细资料
NE153QDM-NZ1 NEW 15.3”IPS QHD 2560*1600 240HZ Laptop LCD Screen Panel

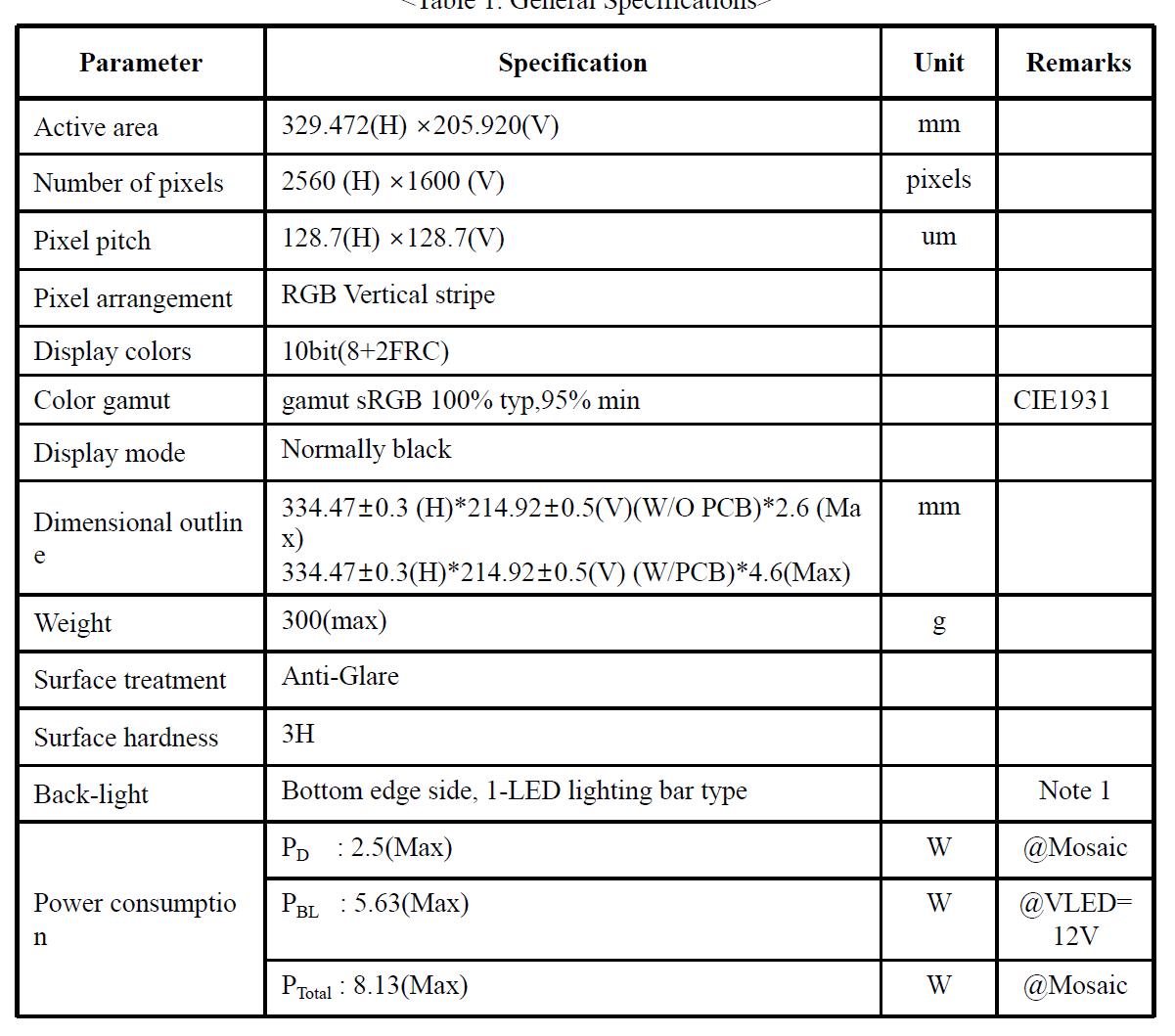

NE153QDM-NZ1 is a color active matrix TFT LCD module using Oxide TFT’s (Thin Film Transistors)
as an active switching devices. This module has a 15.3 inch diagonally measured active area with Full-
HD resolutions (2560 horizontal by 1600 vertical pixel array). Each pixel is divided into RED, GREEN,
BLUE dots which are arranged in vertical stripe and this module can display 10bit(8+2FRC) colors and
color gamut sRGB 100% typ,95% min. The TFT-LCD panel used for this module is a low reflection an
d higher color type. Therefore, this module is suitable for Notebook PC. The LED driver for back-light
driving is built in this model.
All input signals are eDP1.4 interface compatible.
- 4 lane eDP interface with 8.1Gbps link rates
- Thin and light weight, Low Blue Light
- 10bit(8+2FRC) color depth, color gamut sRGB 100%
- Single LED lighting bar (Bottom side/Horizontal Direction)
- Data enable signal mode
- Side mounting frame
- Green product (RoHS & Halogen free product)
- On board LED driving circuit
- Low driving voltage and low power consumption
- On board EDID chip
- DPCD Version 1.4
- Adjust backlight brightness with DC mode
