尺寸： 15.3英寸
接口： eDP (2 Lanes) , eDP1.3 , HBR1 (2.7G/lane) , 30 pins Connector
分辨率： 2560*1600 QHD 超高清液晶屏
类型： 2K 120HZ 高清全视角广色域高刷IPS游戏电竞液晶屏
表面： 雾面， 釉面
对比度： 1200:1 (Typ.) (TM)
亮度： 400 cd/m2 (Typ.)
外观尺寸： 334.47±0.3 (H)*214.92±0.5(V)(W/O PCB)*2.6 (Max)
334.47±0.3(H)*214.92±0.5(V) (W/PCB)*4.6(Max)
显示区域：329.472(H) ×205.920(V)
色彩：10bit(8+2FRC), gamut sRGB 100% typ,95% min
可视角度：89/89/89/89 (Typ.)(CR≥10)
刷新率：120HZ
适用范围：兼容各种商显示，广告机，TV电视，各品牌电脑，工业设备，医疗设备，车载电视等
详情介绍
产品详细资料

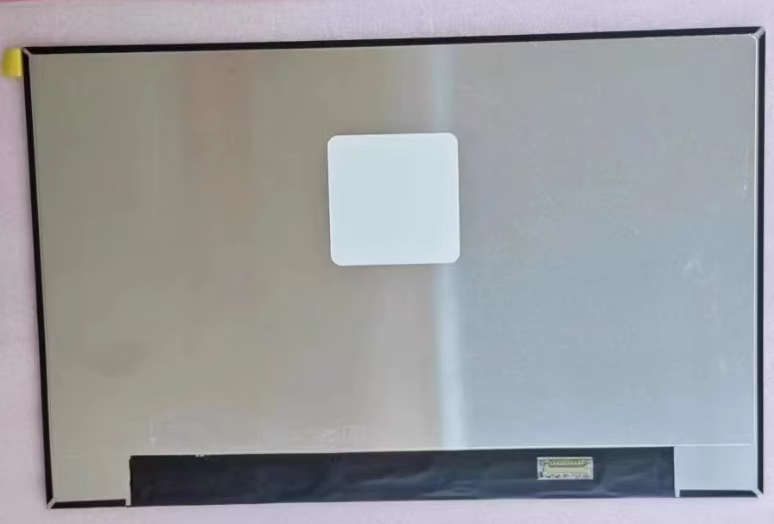

NE153QDM-NY1 NEW 15.3”IPS QHD 2560*1600 20HZ Laptop LCD Screen Panel

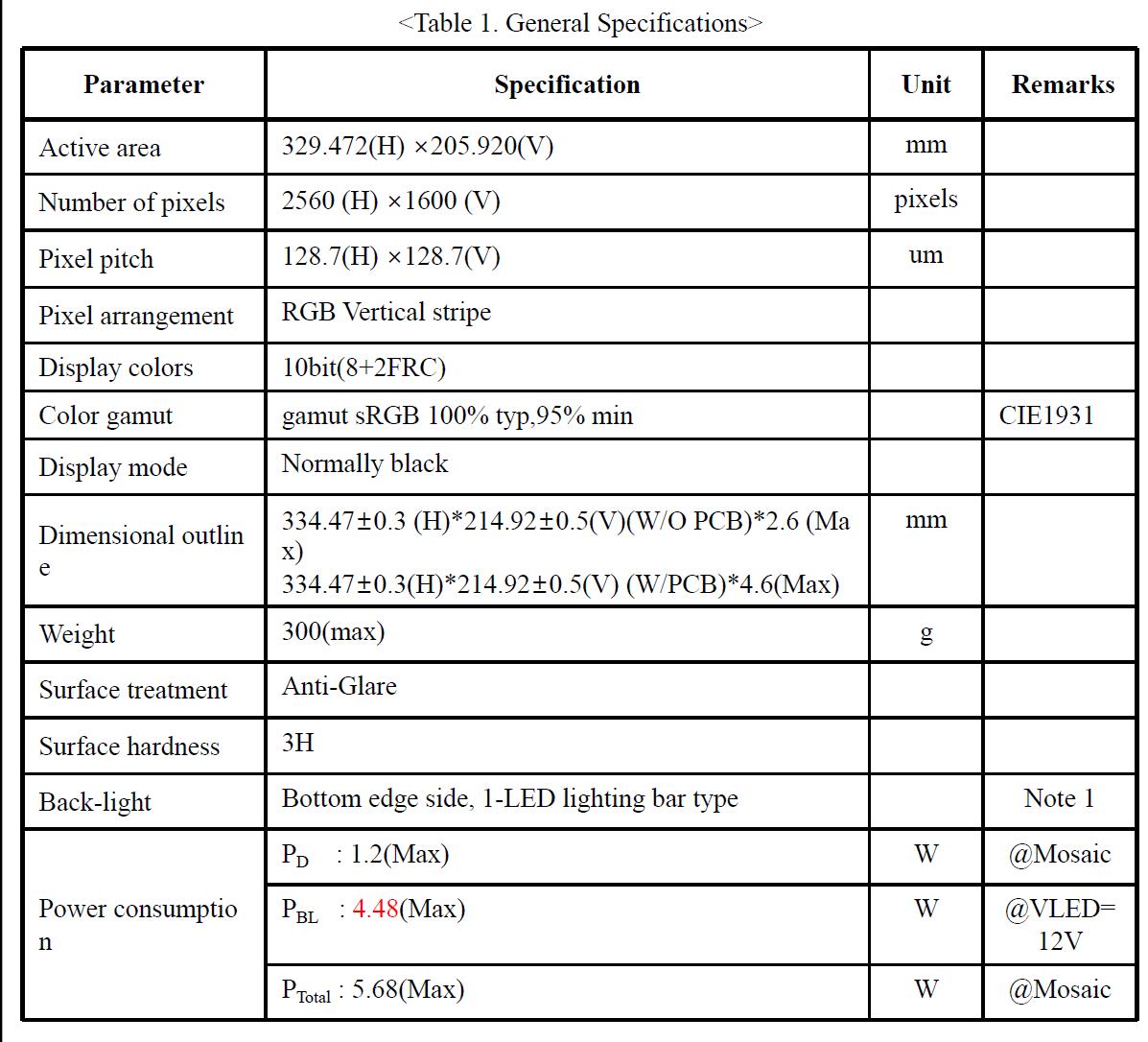

NE153QDM-NY1 is a color active matrix TFT LCD module using Oxide TFT’s (Thin Film Transistors)
as an active switching devices. This module has a 15.3 inch diagonally measured active area with QHD
resolutions (2560 horizontal by 1600 vertical pixel array). Each pixel is divided into RED, GREEN, BL
UE dots which are arranged in vertical stripe and this module can display 10bit(8+2FRC) colors and col
or gamut sRGB 100% typ,95% min. The TFT-LCD panel used for this module is a low reflection and hi
gher color type. Therefore, this module is suitable for Notebook PC. The LED driver for back-light driv
ing is built in this model.
All input signals are eDP1.4 interface compatible.
- 4 lane eDP interface with 5.4Gbps link rates
- Thin and light weight, Low Blue Light
- 10bit(8+2FRC) color depth, color gamut sRGB 100%
- Single LED lighting bar (Bottom side/Horizontal Direction)
- Data enable signal mode
- Side mounting frame
- Green product (RoHS & Halogen free product)
- On board LED driving circuit
- Low driving voltage and low power consumption
- On board EDID chip
- DPCD Version 1.4
- Adjust backlight brightness with DC mode
