尺寸: 16英寸
接口: eDP (2 Lanes) , eDP1.3 , HBR1 (2.7G/lane) , 30 pins Connector
分辨率: 2560*1600 QHD 超高清液晶屏
类型: 2K 165HZ 高清全视角广色域高刷IPS游戏电竞液晶屏
表面: 雾面, 釉面
对比度: 1200:1 (Typ.) (TM)
亮度: 500 cd/m2 (Typ.)
外观尺寸: 349.68(W)×224.42(H)×4.6(D) mm
显示区域:344.678(W)×215.424(H) mm
色彩:1.06B 100% DCI-P3
可视角度:89/89/89/89 (Typ.)(CR≥10)
刷新率:240HZ
适用范围:兼容各种商显示,广告机,TV电视,各品牌电脑,工业设备,医疗设备,车载电视等
详情介绍
产品详细资料

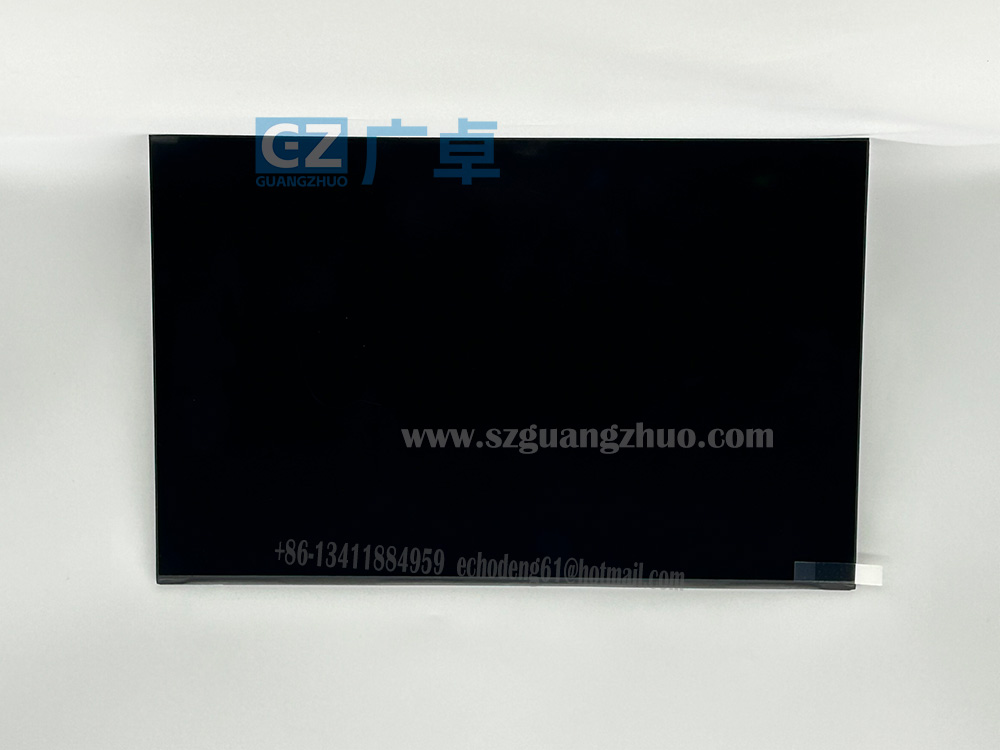

NE160QDM-NZ3 (Product Code: BOE0AB5) released by BOE Technology Group Co., Ltd.
(hereafter called BOE). According to datasheet with version of V8.0_Rev.P2 which was released out on 12 22 2021,
NE160QDM-NZ3 supports display 2560(RGB)×1600 (WQXGA) with aspect ratio of 16:10 (W:H),
whose pixels are arranged in RGB Vertical Stripe.
As for mechanical detail, it features active area of 344.678(W)×215.424(H) mm,
outline size of 349.68(W)×224.42(H)×4.6(D) mm, with surface treament of Antiglare,
Hard coating (3H), net weight of 312g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a ADS, Normally Black, Transmissive LCM product,
NE160QDM-NZ3 can provides 500 cd/m² display brightness 1200:1 transimissive contrast ratio,
80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle,
best view direction on Symmetry , and response time of 3 (Typ.)(G to G) ms.
Gray scale or the brightness of the sub-pixel is determined with a 8-bit + FRC gray scale signal for each dot,
thus presenting a palette of 1.06B colors, also with performance of color gamut 100% (DCI-P3).
This product adopted WLED as it’s backlight systerm which was placed as Edge light type
and have a working life time of 15K hours, With LED Driver.
NE160QDM-NZ3 utilizes eDP (4 Lanes) as it’s signal inputting systerm,
which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.).
It’s typical vertical frame rate (Fv) is 240Hz. For more latest product detail of NE160QDM-NZ2
We strongly recommend that you should refer to datasheet listed on www.szguangzhuo.com or contact with BOE or it’s distributor.
