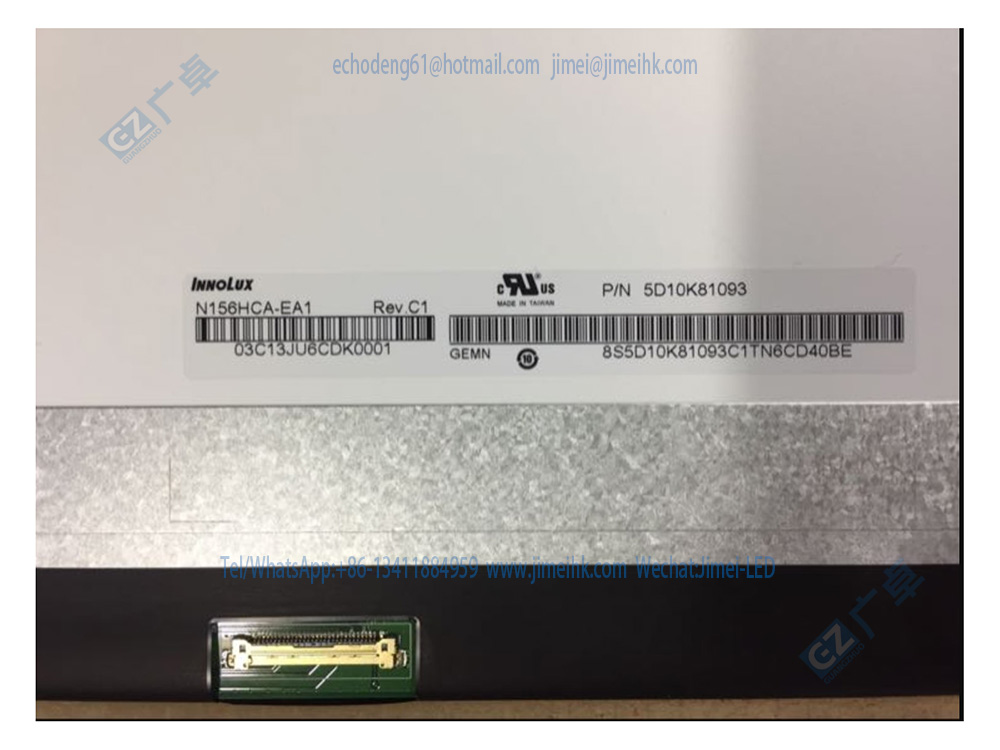

N156HCA-EA1 (Product Code: CMN15D7) released by Innolux Corporation (hereafter called Innolux).

According to datasheet with version of Ver3.0 which was released out on 4 20 2018,

N156HCA-EA1 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H),

whose pixels are arranged in RGB Vertical Stripe.

As for mechanical detail, it features active area of 344.16(W)×193.59(H) mm,

outline size of 350.16(W)×216(H)×3.2(D) mm, with surface treament of Antiglare,

Hard coating (3H), net weight of 354/365g (Typ./Max.),

shape stype of Slim (PCBA Flat, T≤3.2mm).

As a AAS, Normally Black, Transmissive LCM product,

N156HCA-EA1 can provides 300 cd/m² display brightness 700:1 transimissive contrast ratio,

89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry ,

and response time of 14/11 (Typ.)(Tr/Td) ms.

Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot,

thus presenting a palette of 262K colors, also with performance of color gamut 72% (NTSC).

This product adopted WLED as it’s backlight systerm which was placed as Edge light type

and have a working life time of 15K hours, With LED Driver.

N156HCA-EA1 utilizes eDP (2 Lanes) as it’s signal inputting systerm,

which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).

It’s typical vertical frame rate (Fv) is 60Hz.

For more latest product detail of N156HCA-EA1 We strongly recommend that you should refer to datasheet listed on SZGUANGZHUO.COM or contact with Innolux or it’s distributor.
