尺寸: 15.6英寸
接口: eDP (2 Lanes) , eDP1.3 , HBR1 (2.7G/lane) , 30 pins Connector
分辨率: 1920*1080 FHD 超高清液晶屏
类型: FHD EDP 高清全视角广色域IPS液晶屏
表面: 雾面, 釉面
对比度:800:1 (Typ.) (TM)
亮度: 500 cd/m2 (Typ.)
外观尺寸:350.76 × 223.78 × 3.2 (H×V×D)
显示区域:344.16(W)×193.59(H) mm
色彩:16.7M 99% DCI-P3
可视角度:85/85/85/85 (Typ.)(CR≥10)
刷新率:60HZ
适用范围:兼容各种商显示,广告机,TV电视,各品牌电脑,工业设备,医疗设备,车载电视等
详情介绍
产品详细资料

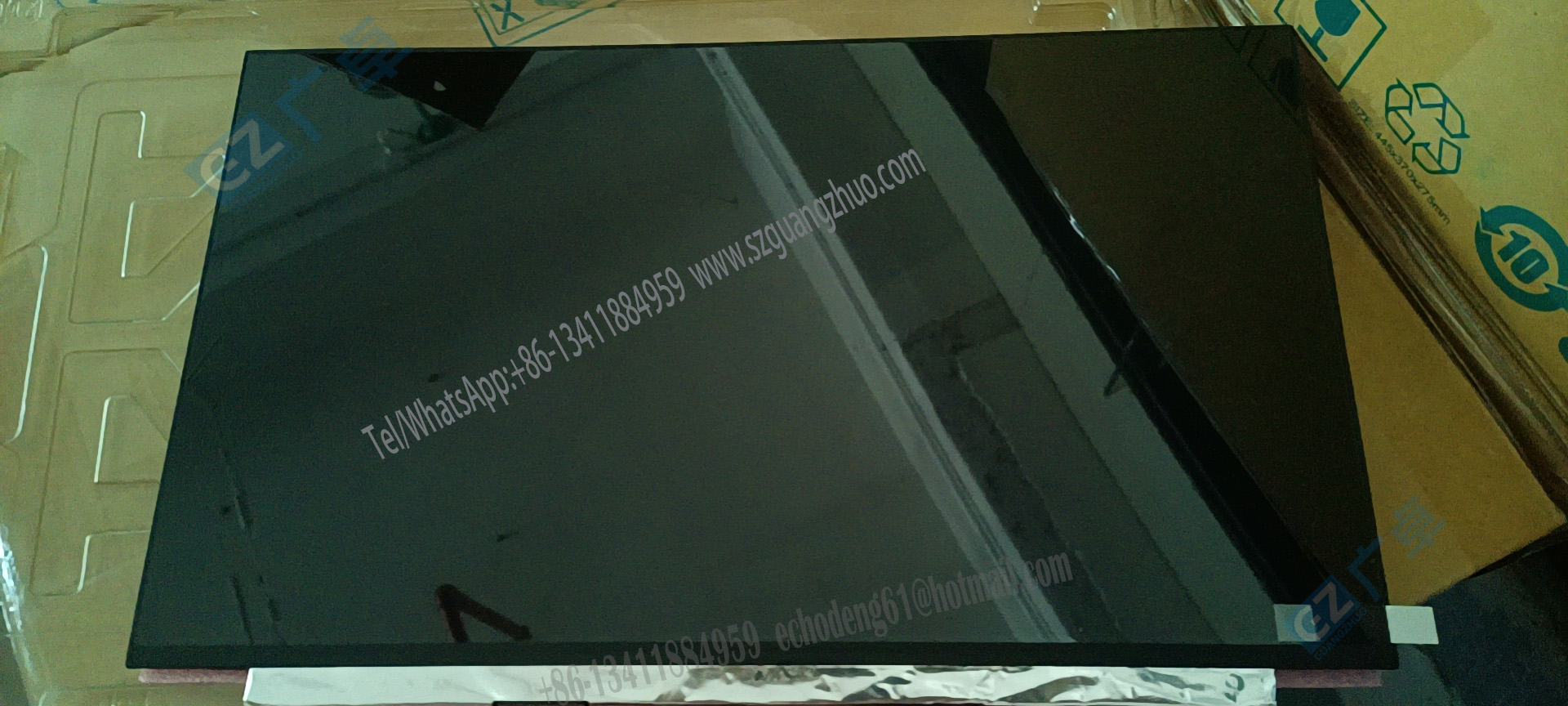

NV156FHM-N4R (Product Code: BOE08CF) released by BOE Technology Group Co., Ltd. (hereafter called BOE).
According to datasheet with version of Rev.0 which was released out on 3 31 2020,
NV156FHM-N4R supports display 1920(RGB)×1080 (FHD)
with aspect ratio of 16:9 (W:H),
whose pixels are arranged in RGB Vertical Stripe.
As for mechanical detail, it features active area of 344.16(W)×193.59(H) mm,
outline size of 350.66(W)×216.68(H)×3.2(D) mm,
with surface treament of Antiglare,
Hard coating (3H), net weight of 380g (Max.),
shape stype of Slim (PCBA Flat, T≤3.2mm). As a ADS,
Normally Black, Transmissive LCM product,
NV156FHM-N4R can provides 500 cd/m² display brightness
800:1 transimissive contrast ratio,
85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle,
best view direction on Symmetry ,
and response time of 16 (Typ.)(Tr+Td) ms.
Gray scale or the brightness of the sub-pixel is determined with a 6-bit + FRC gray scale signal for each dot,
thus presenting a palette of 16.2M colors,
also with performance of color gamut 99% (DCI-P3).
This product adopted 9S8P WLED as it’s backlight systerm
which was placed as Edge light type (Bottom side)
and have a working life time of 15K hours,
With LED Driver.
NV156FHM-N4R utilizes eDP (2 Lanes) as it’s signal inputting systerm,
which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).
It’s typical vertical frame rate (Fv) is 60Hz.
For more latest product detail of NV156FHM-N4R
We strongly recommend that you should refer to datasheet listed on Szguangzhuo.com or contact with BOE or it’s distributor.
