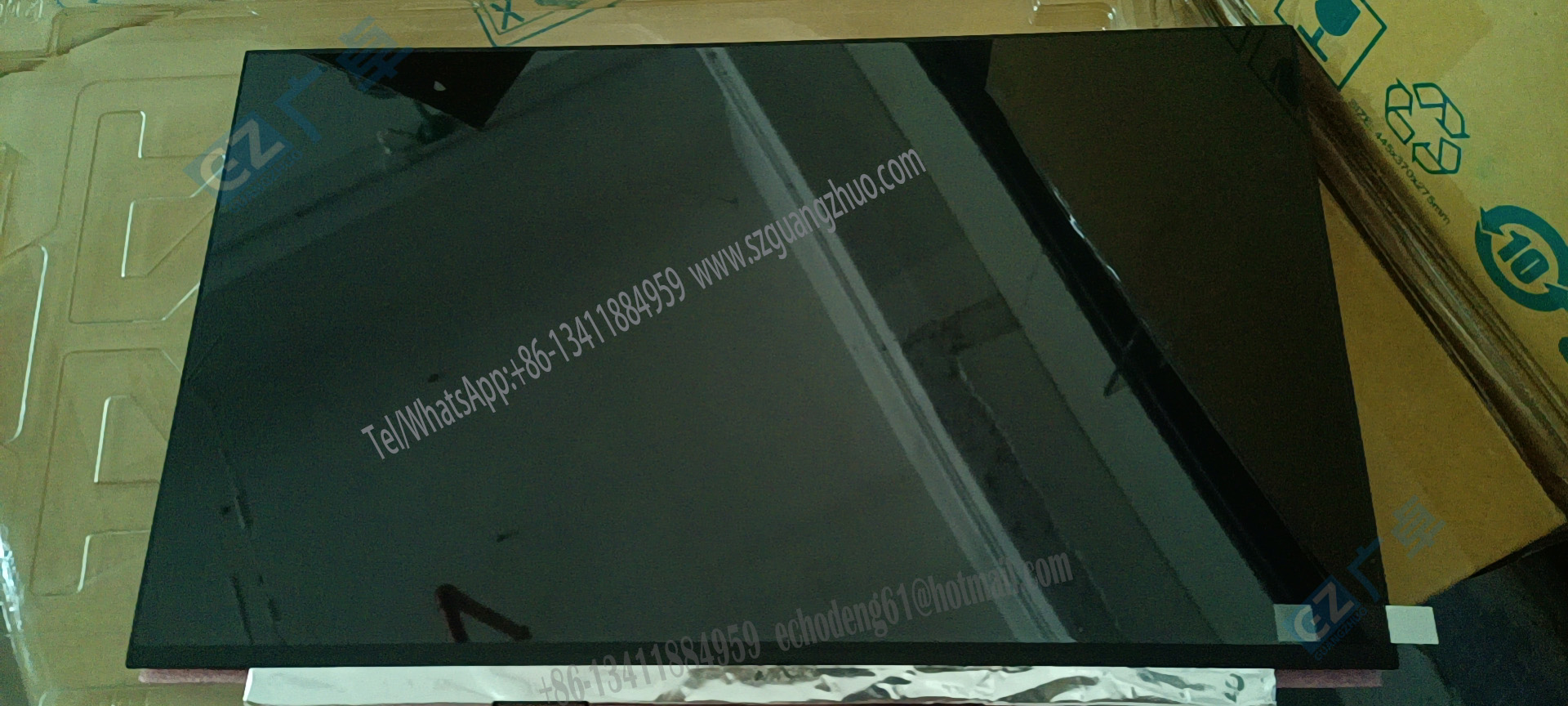

NV156FHM-N45 (Product Code: BOE06F9) is
a 15.6 inch diagonal a-Si TFT-LCD display screen product,
with an incorporated WLED lighting system, With LED Driver,
without touch screen.

Based on datasheet with version of Rev.P0
which was released out on 1 17 2017,
NV156FHM-N45 supports display 1920(RGB)×1080 (FHD)
with aspect ratio of 16:9 (W:H),
whose pixels are arranged in RGB Vertical Stripe.

As for mechanical detail, it features active area of 344.16(W)×193.59(H) mm,
outline size of 350.66(W)×216.15(H)×3.2(D) mm,
with surface treament of Antiglare, net weight of 370g (Max.),
shape stype of Slim (PCBA Flat, T≤3.2mm). As a ADS, Normally Black,

Transmissive LCM product,
NV156FHM-N45 can provides 220 cd/m² display brightness
600:1 transimissive contrast ratio,
85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle,
best view direction on Symmetry ,
and response time of 30 (Typ.)(Tr+Td) ms.

Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot,
thus presenting a palette of 262K colors, also with performance of color gamut 45% (NTSC).

This product adopted 10S4P WLED as it’s backlight systerm
which was placed as Edge light type (Bottom side)
and have a working life time of 15K hours,With LED Driver.

NV156FHM-N45 utilizes eDP (2 Lanes) as it’s signal inputting systerm,
which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).
It’s typical vertical frame rate (Fv) is 60Hz.

For more latest product detail of NV156FHM-N45 We strongly recommend that
You should refer to datasheet listed on Szguangzhuo.com or contact with BOE or it’s distributor.

•  2 lane eDP Interface with 2.7Gbps Link Rates
•  Thin and light weight
•  6-bit color depth, display 262K colors
•  Single LED Lighting Bar. (Down side/Horizontal Direction)
•  Green Product (RoHS & Halogen free product)
•  On board LED Driving circuit
•  Low driving voltage and low power consumption
•  On board EDID chip
