NV156FHM-N4V (Product Code: BOE0928) released by BOE Technology Group Co., Ltd. (hereafter called BOE).
According to datasheet with version of Rev.P1 which was released out on 6 16 2020,
NV156FHM-N4V supports display 1920(RGB)×1080 (FHD)
with aspect ratio of 16:9 (W:H),
whose pixels are arranged in RGB Vertical Stripe.

As for mechanical detail, it features active area of 344.16(W)×193.59(H) mm,
outline size of 350.66(W)×205.69(H)×5.4(D) mm,
with surface treament of Hard coating (3H),
net weight of 380g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm).

As a ADS, Normally Black, Transmissive LCM product,
NV156FHM-N4V can provides 250 cd/m² display brightness 700:1 transimissive contrast ratio,
89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry ,
and response time of 30 (Typ.)(Tr+Td) ms.

Gray scale or the brightness of the sub-pixel is determined
with a 6-bit gray scale signal for each dot,
thus presenting a palette of 262K colors, also with performance of color gamut 45% (NTSC).

This product adopted 10S4P WLED as it’s backlight systerm
which was placed as Edge light type (Bottom side) and have a working life time of 15K hours,
With LED Driver.

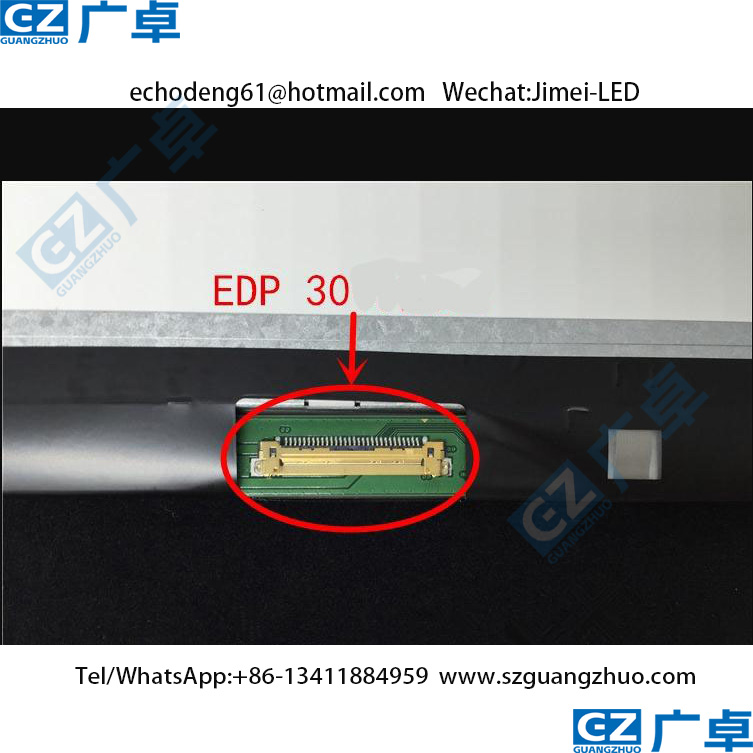

NV156FHM-N4V utilizes eDP (2 Lanes) as it’s signal inputting systerm,
which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).

It’s typical vertical frame rate (Fv) is 60Hz.
For more latest product detail of NV156FHM-N4V
We strongly recommend that you should refer to datasheet listed on jimei.com or contact with BOE or it’s distributor.

•  2 lane eDP Interface with 2.7Gbps Link Rates
•  Thin and light weight
•  6-bit color depth, display 16.2M   100% sRGB
•  Single LED Lighting Bar. (Down side/Horizontal Direction)
•  Green Product (RoHS & Halogen free product)
•  On board LED Driving circuit
•  Low driving voltage and low power consumption
•  On board EDID chip
