产品详细资料

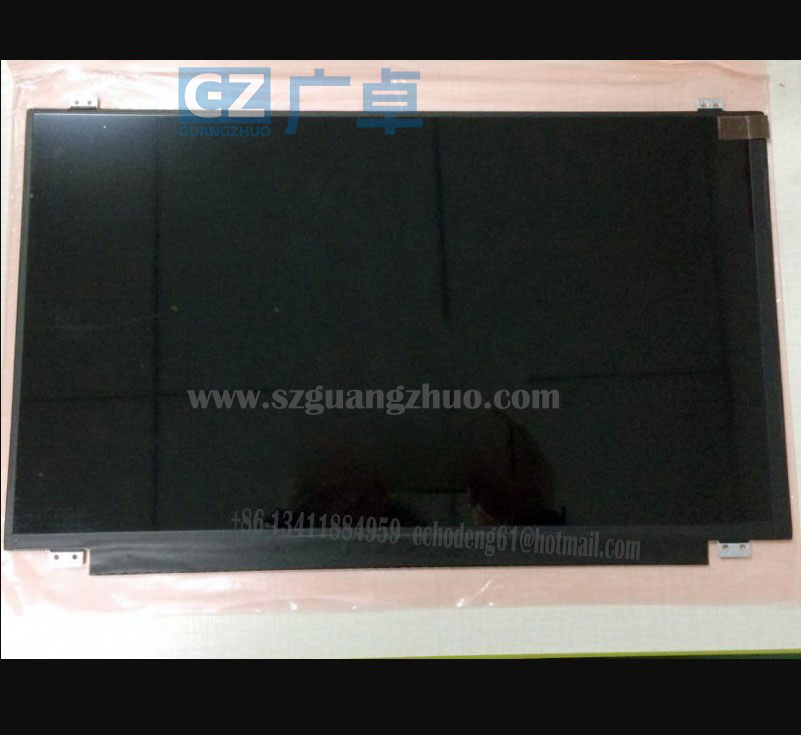

NV156FHM-N46 (Product Code: BOE06B9)

is a 15.6 inch diagonal a-Si TFT-LCD display screen product,

with an incorporated WLED lighting system, With LED Driver,

without touch screen.

Based on datasheet with version of Rev.P1

which was released out on 11 22 2016,

NV156FHM-N46 supports display 1920(RGB)×1080 (FHD)

with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe.

As for mechanical detail, it features active area of 344.16(W)×193.59(H) mm,

outline size of 359.5(W)×223.8(H)×3.29(D) mm,

with surface treament of Antiglare, Hard coating,

net weight of 380g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm).

As a ADS, Normally Black, Transmissive LCM product,

NV156FHM-N46 can provides 265 cd/m² display brightness

800:1 transimissive contrast ratio,

85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle,

best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms.

Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot,

thus presenting a palette of 262K colors,

also with performance of color gamut 45% (NTSC).

This product adopted 9S6P WLED as it’s backlight systerm

which was placed as Edge light type (Bottom side) and have a working life time of 15K hours,

With LED Driver.

NV156FHM-N46 utilizes eDP (2 Lanes) as it’s signal inputting systerm,

which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).

It’s typical vertical frame rate (Fv) is 60Hz.

•  2 lane eDP Interface with 2.7Gbps Link Rates
•  Thin and light weight
•  6-bit color depth, display 262K colors
•  Single LED Lighting Bar. (Down side/Horizontal Direction)
•  Green Product (RoHS & Halogen free product)
•  On board LED Driving circuit
•  Low driving voltage and low power consumption
•  On board EDID chip
